Cleanroom Cras Software

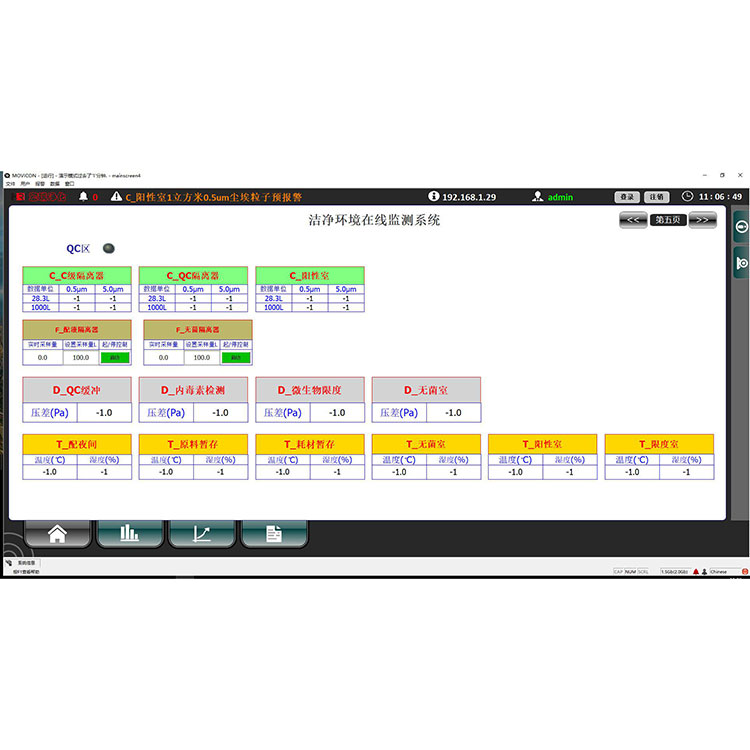

Zetron high quality FMS Cleanroom Monitoring System Softwaremainly consists of five major parts: measuring sensor, vacuum pump control system, network cabinet, alarm system and upper computer monitoring software, which can realize real-time monitoring of cleanliness, temperature and humidity, differential pressure, wind speed and other parameters in the clean room, and complete data storage and management functions.

Model:FMS

Mitte Inquisitionem

FMSCleanroom Cras Software

Per productionem processus, conditiones in circuitu environment sunt plerumque semper mutabilis, et manual vigilantia non potest providere continua magna notitia, ita non potest aestimare, cum ratio deviat ex certa operantes conditionibus, multo minus qualitas est adimat adimationem, quam ratio deviat ex operatione conditionibus, multo minus qualitas ex operatione, multo minus qualitas est. Sinis Zetron Cleanroom Cras System Software vitat hoc defectus manual vigilantia per installing multiple remotis particula sensoriis in variis puncta, ubi sensoriis mensura in realis et transmittat mensurae results ad computer. Temperature, humiditas et differentialis pressura, ventum celeritas, natantis bacteria comitem, etc. sunt omnes metiri a pertinet probat.

R210/R310 Dust Particle Sensor

2. Sensitivity: 0.3μm

3. Two channels: 0.5μm, 5.0μm (optional 0.3μm, 0.5μm)

4. Data display: on-site real-time data LCD / without display

5. Communication mode: standard Modbus-TCP, Modbus-RTU protocol or 0-5V, 4-20mA analog output

6.Sampling flow rate: 2.83L/min or 28.3L/min

7. Counting efficiency: 50%@0.3μm (in accordance with JIS)

8. Flow rate error: ±5%

9. Allowable large sampling concentration: 35000pcs / L

10.Light source: laser diode

11.Vacuum source: built-in air pump / external air pump

12.Aluminum alloy shell + stainless steel protective case

13.Power supply: 220V±10%, 50Hz±2Hz

14.Monitoring range: Class 100 ~ Class 300,000

15.External dimensions (W × L × H): 120 × 65 × 132 (mm)

16. Working environment: temperature: 0-50℃; humidity: <85%RH

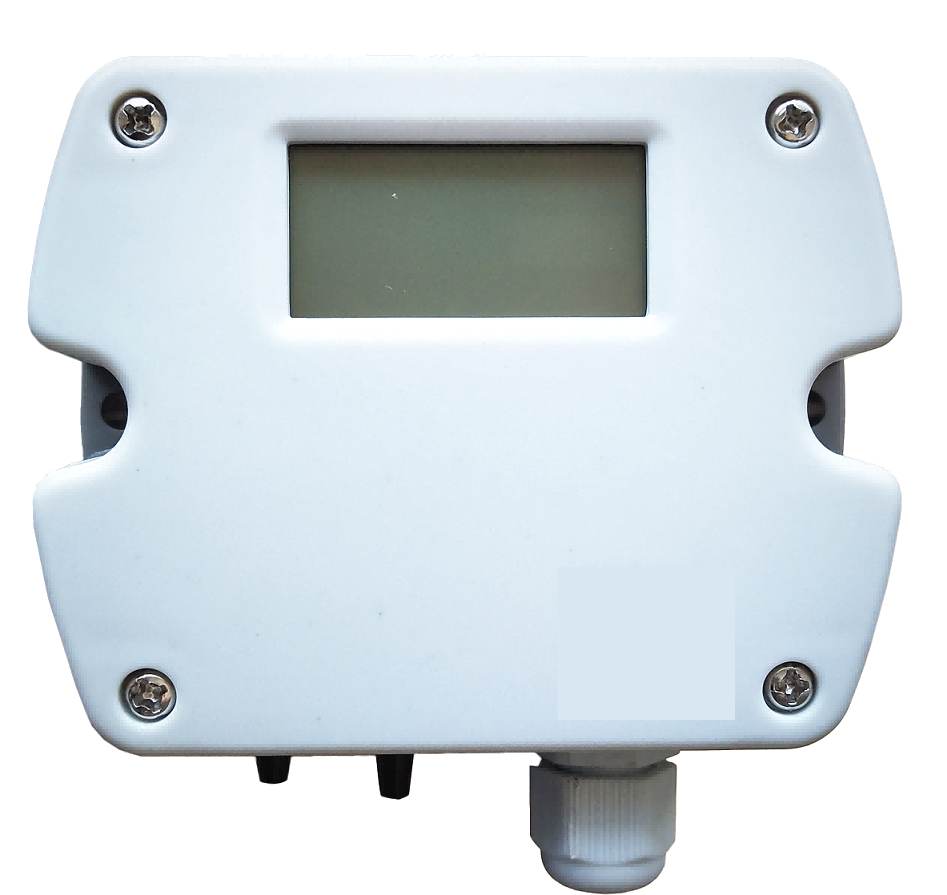

DP-30R Differential Pressure Sensor

1. Data display: on-site real-time data display / without display

2. Communication mode: standard Modbus-TC, Modbus-RTU protocol or 0-10V, 4-20mA analog output

3. Measuring range: differential pressure: 0-±125Pa, 0-±250Pa, 0-±500Pa, 0-1000Pa, 0-2500Pa, 0-5000Pa various specifications are available

4.External dimensions (W×L×H): 135×37×91 (mm)

5.Weight: 0.23Kg

TH-30R Temperature and Humidity Sensor

1. Measuring range: Temperature: -20-80℃ Humidity: 0-100%RH

2. Data display: on-site real-time data LCD display / without display

3. Communication mode: standard Modbus-TC, Modbus-RTU protocol or 0-10V, 4-20mA analog output

4. Dimension (W×L×H): 135×37×91 (mm)

5. Weight: 0.23Kg

6. Measurement accuracy：Temperature：±0.3℃ Humidity：±3%RH

FSC-R10 Microbio Air Sampler

1. Sampling flow: 28.3L/mim 50L/mim 100L/mim

2. Collection efficiency: ≥ 98%

3. Sampling head volume: ￠100×50mm

4. Sampling head material: 316L stainless steel

5. Sampling head weight: 1.6Kg

6. With field start / stop control switch

7. Working environment: temperature: 0-50℃, humidity: <85%RH

WS-30R Wind Speed Sensor

1.Measuring range: 0-1m/s 0-2m/s 0-10 m/s 0-20m/s 0-30m/s 0-40m/s

2.Measurement accuracy: ±0.1 m/s

3. Response time: <3 seconds

4. Communication mode: standard Modbus-TCP, Modbus-RTU protocol or 0-10V, 4-20mA analog output

5. Power supply voltage: DC 9-24V

6. Working range: temperature: 0-50℃, humidity: <85%RH

7. Weight: 0.23Kg

8. Dimension (W×L×H): 135×37×91 (mm), probe rod is PVC plastic

FMS mundum environment online magna ratio est late in biomedical, electronics, praecisione instrumenta, automobile vestibulum, novum industria, eget et aliis agris.
