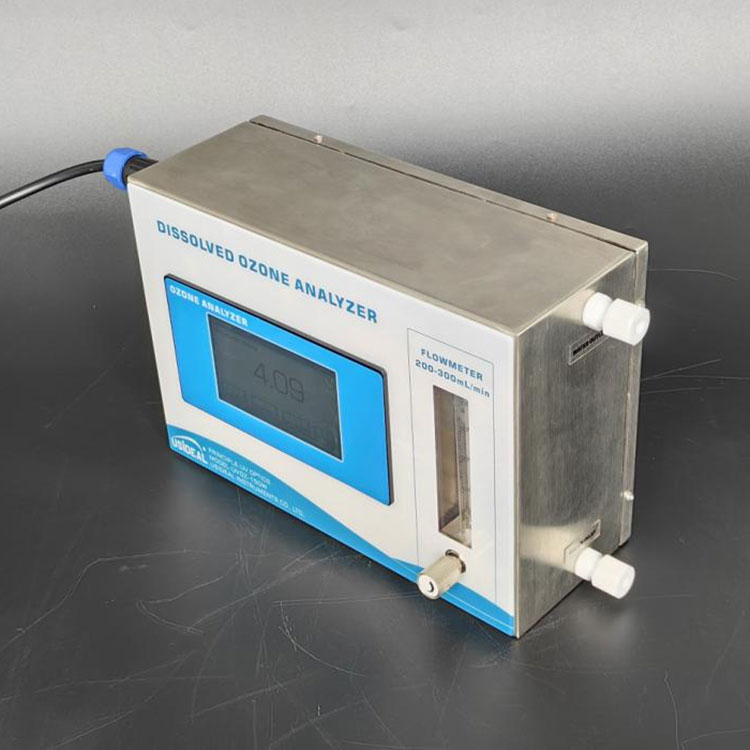

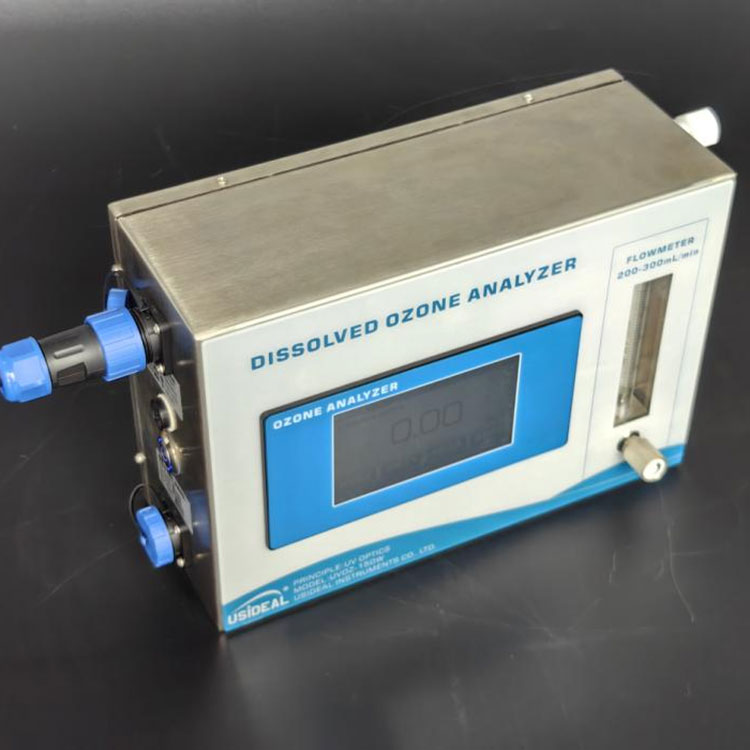

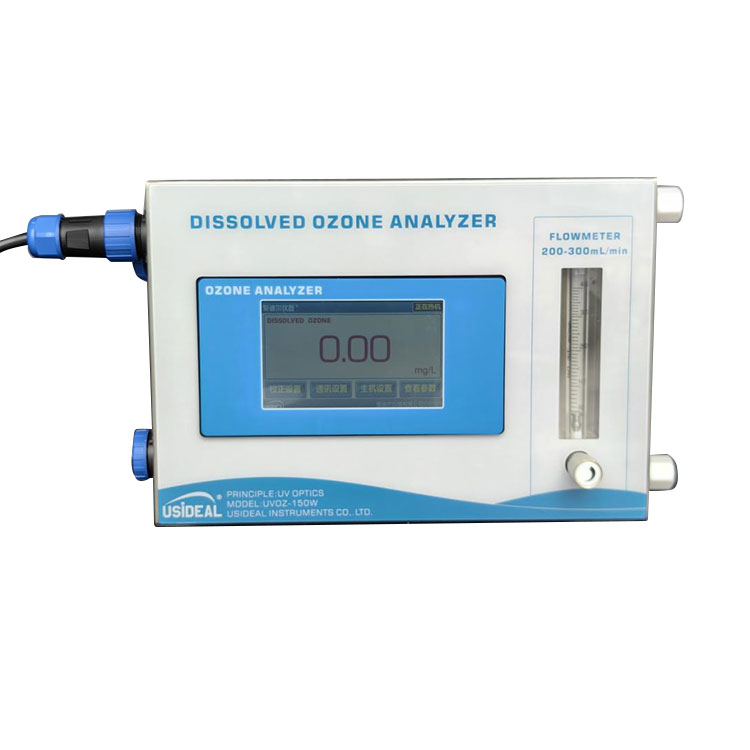

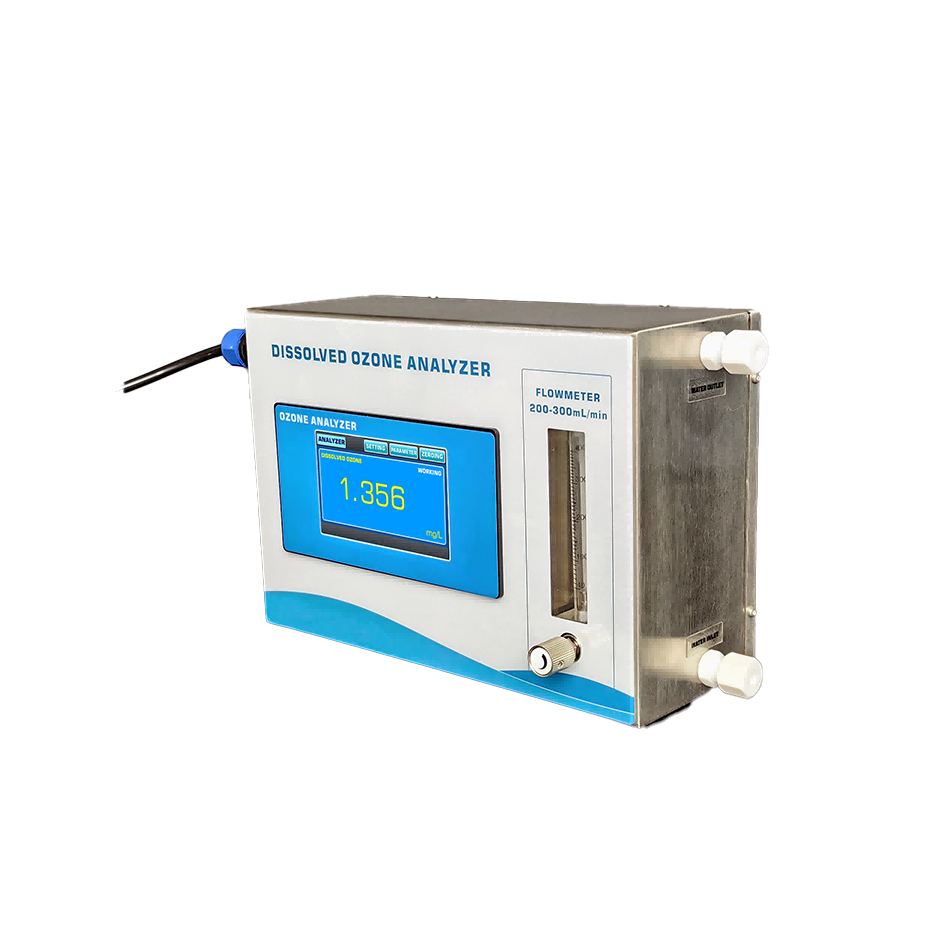

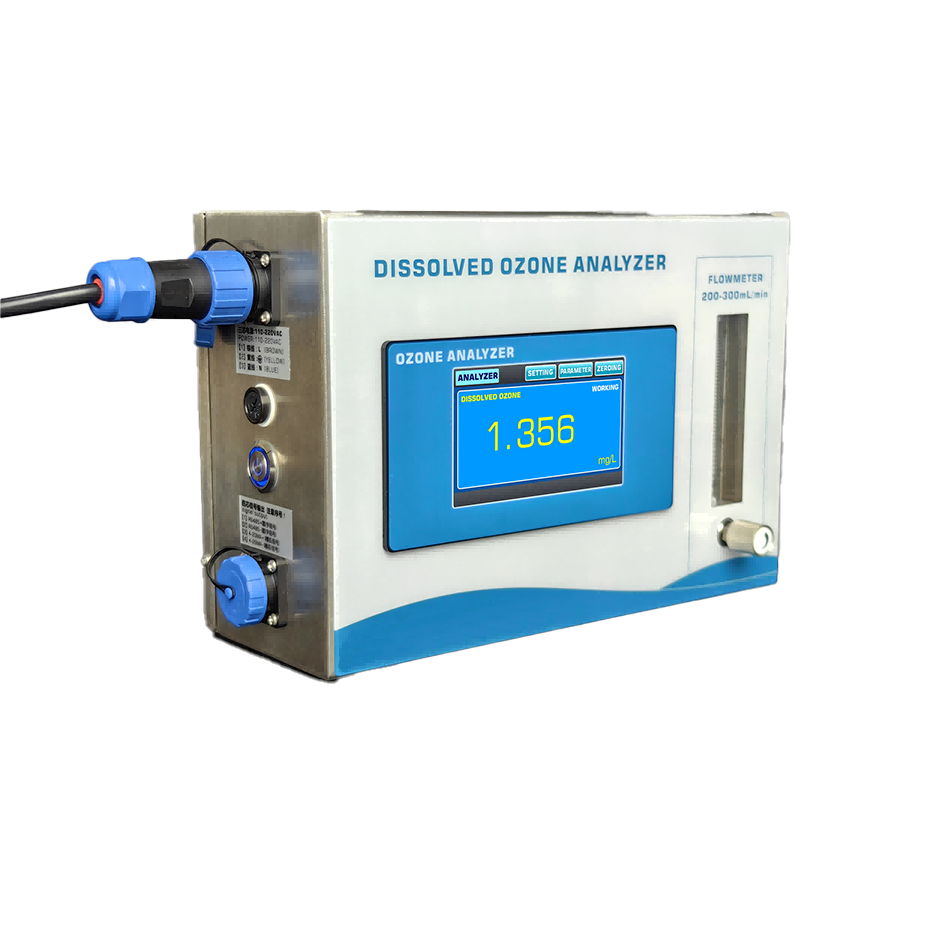

Solvitur aqua Ozone Concentratio Analyzer

Ozone aqua dissoluta Concentratio Analyser Detectio principium: UV effusio dual-iter methodus, adhibita ad analysin et detectionem ozonis aquae dissolutae retrahitur in aqua pura vel industria semiconductori.
Dimensio ambitus: 0-50ppm; 0-100ppm; 0-200ppm; 0-300ppm

Model:OZ-150W

Mitte Inquisitionem

Ozone Aquae Concentratio Analyzer features: processus patentes, cum UV fons lucis automatariae systematis ad componendum stabilitatem lucis fontis in tempore reali, principium duplicatum UV effusio, peregrinatio diuturnae vitae UV lucis principium ducitur, operatio continua ad stabilitatem deprehensionis conducit.

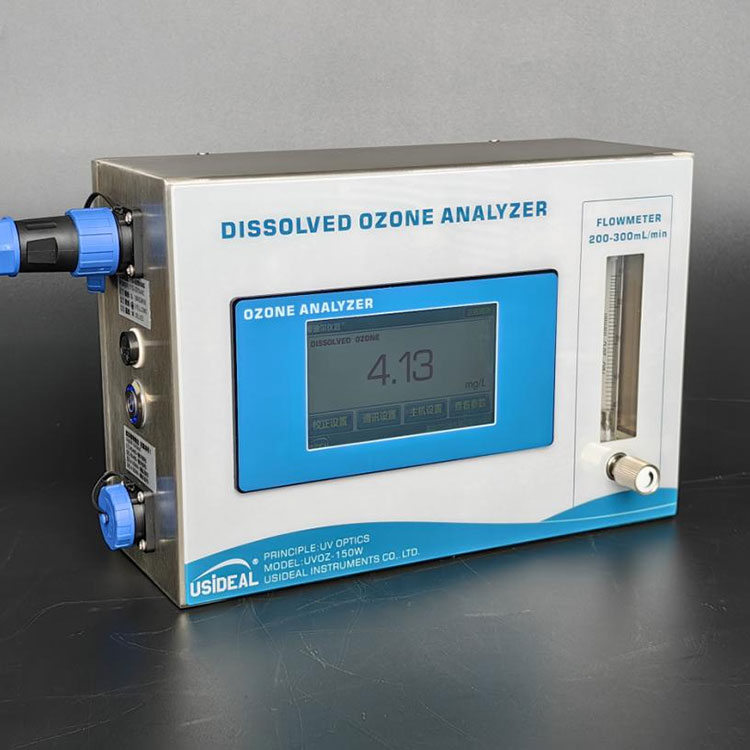

UVOZ-150W Ozona aqua dissoluta Concentratio Analyser parametri technici:

range mensuræ	0-200ppm;
range mensuræ	0-50ppm; 0-100ppm; 0-200ppm; 0-300ppm;
Lux fons vitae	circiter 30000-50000 horis;

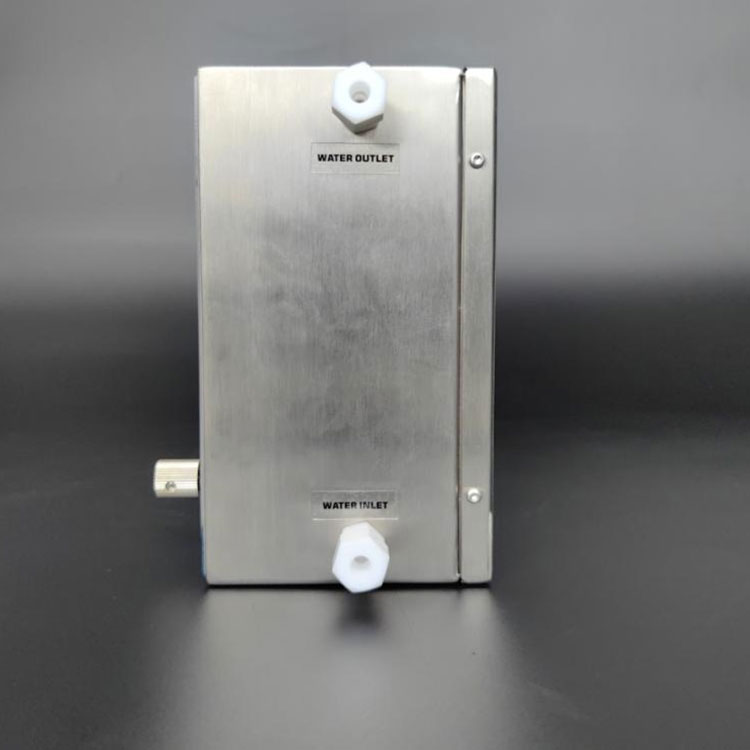

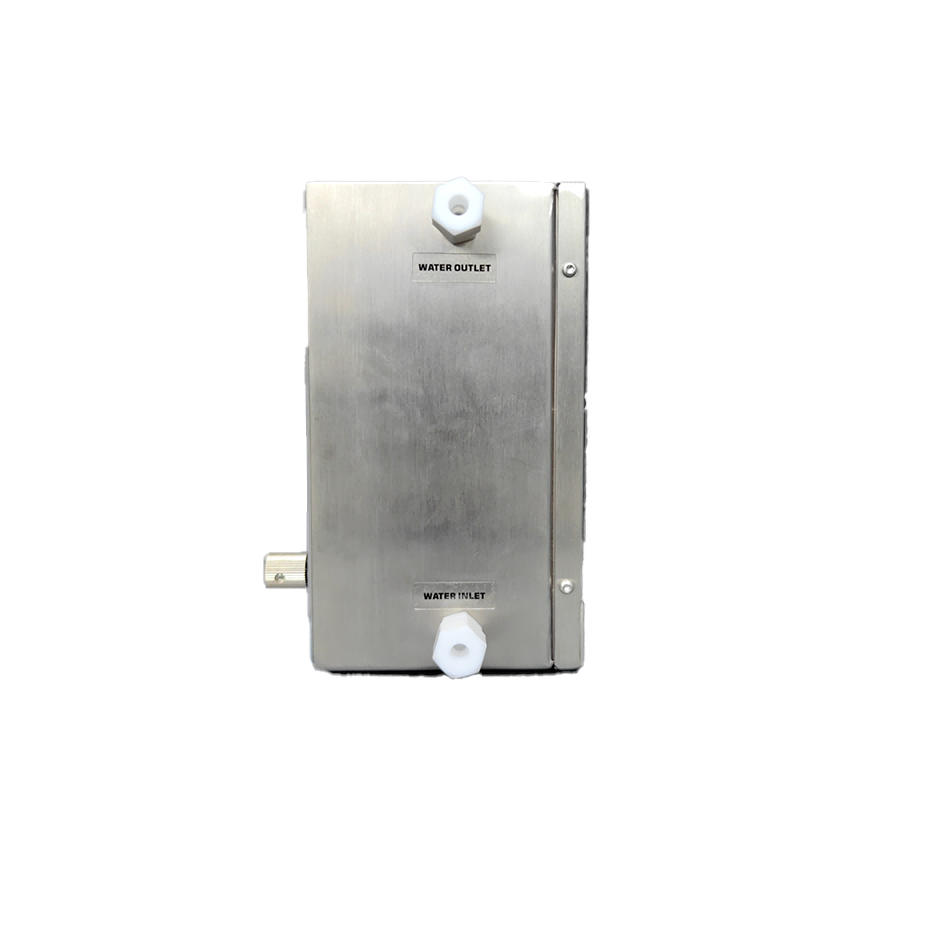

Sampling modus	positivum pressura sampling, negative pressura sampling, nota	omnes methodi sampling ornati sunt soleatus, valvulae, metra ad exitum fluunt;
Ozone contactu materiae	vicus, PTFE, PTFE, PTFE, FFPM (HF vers. sapphirus, PTFE, PFA, FFPM);

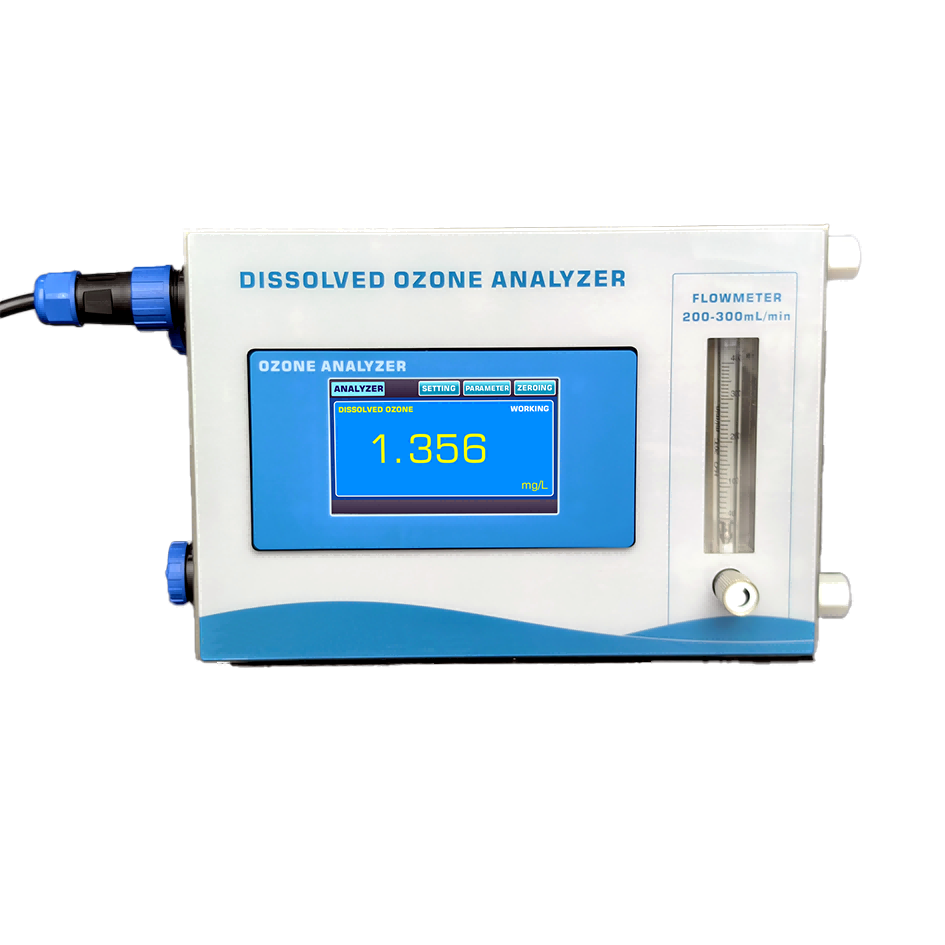

Propono interface	4.3 digiti tactus velamentum operationis interfaciei;
Propono unitas	g/m3, mg/L, ppm ad libitum;
Propono resolutio	0.01ppm;
Sampling flow	200-300mL/min;
Initus pressura	<0.1MPa;
Concentratio errorum	maximum 0.3% FS;
Linearibus error	Maximum 0.2% FS;
Nulla summa	<±0.3%.FS;
Ambiens temperatus	0-50℃;
Interface	perplexum (PTFE);
Sampling diam	Φ6 (6mm*4mm);

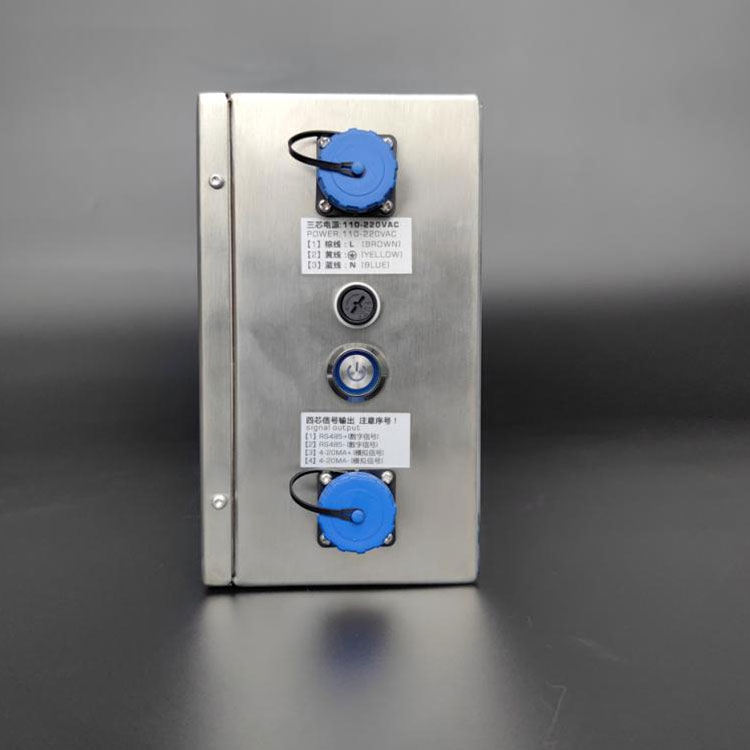

Communicationis	RS-485;
Output	4-20mA (activum);
Potentia copia	220V AC (ad libitum 24VDC);
Dimensiones	180mm (altitudo) 260mm (latitudo) 90mm (profundum);
Pondus	3KG
Free warranty	24 months (hospes);
