Portable Multi Gas Detector

Zetron PTM600 Portable Multi-gas Detector notam notam mundi notam integrat sensoriis, idoneus tentandi usque ad 18 vapores simul. Pressura sensorem, caliditatem et humiditatem sensorem instructus, et compatible cum variis caloris sampling speculandi, celeriter acquirit et analyses partium concentrationis gas. Specimen pro investigationibus scientificis, universitatibus, chymicis, vigilantia environmental, et analysi gasi flue. Officia OEM et ODM ad certa requisita occurrentes praebemus.

Model:PTM600

Mitte Inquisitionem

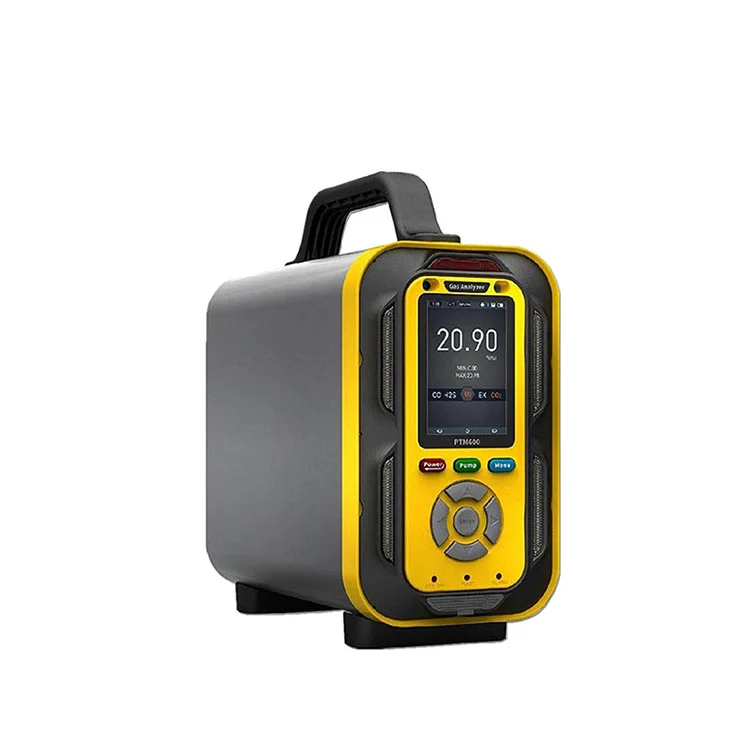

PTM600 Portable Multi Gas Detector

PTM600 Multi-gas Detector apud notam mundi clarissimi sensorem, maxime XVIII vapores temptare potuit, cum sensorem, caliditatem et humiditatem sensorem, opera cum diversis rimationis temperaturae explorationibus, celeriter acquirere et resolvere gasi concentratio partium in investigatione scientifica, universitate et chymitia, ambitu et fluminibus gasi acquirere potuit.

Gasos esse deprehendi	Range	Minimum lectio	Responsio temporis T90
Gas combustilium ( EX )	0-100% LEL	0.1%LEL	≤10 secundae
Methanum ( CH4 )	0-100% LEL	0.1%LEL	≤10 secundae
Oxygen gas ( O2 )	0-30% Vol	0.01% Vol	≤10 secundae
Monoxida carbonis ( CO )	0-100ppm	0.1ppm	≤25 seconds
Dioxydum carbonis ( CO2 )	0-500ppm	1ppm	≤20 seconds
Ozonum ( O3 )	0-1ppm	0.001ppm	≤20 seconds
Hydrogenium sulfide ( H2S )	0-10ppm	0.001ppm	≤30 seconds
Sulphur dioxidem ( SO2 )	0-10ppm	0.001ppm	≤30 seconds
Spodium nitricum ( NO )	0-10ppm	0.001ppm	≤30 seconds
TotalVolatileOrganic Compone gasorum ( TVOC )	0-10ppm	0.001ppm	≤30 seconds
Gastilium volatilium ( PID )	0-10ppm	0.001ppm	≤30 seconds

Gases	Compositum 1~6 genera gasorum, quae ad 18 vel plura genera gasorum divulgari possunt, ut vapores toxici, gasi oxygeni, dioxides carbonii, vapores inflammabiles et explosivi, TVOC, et sic porro.
Application missiones	Omnes casus, qui requirunt deprehensionem collectionum gasorum portatiles, sicut petroleum, chemicum, pharmaceuticum, environmental tutela, distributio gasi combustionis, mercium, fumi analysin gasi, regimen aeris et cetera.
Deprehensio range	0~1, 10, 100, 1000, 5000, 50000, 100000ppm. 0 ~ 200 mg/L, 0 ~ 100%LEL, 0 ~ 20%, 50, 100% Vol, seligi potest; et alia loca nativus esse potest.
Resolution	0.01ppm vel 0.001ppm (0~10 ppm);
	0.01ppm (0~100 ppm);
	0.1ppm (0~M ppm);
	1ppm (0~M000 ppm vel plures);
	0.01 mg/l (0 ~ 200 mg/l);
	0.1% LEL,
	0.01%LEL
	0.001% Vol
Deprehensio principium	Electrochemical, catalytic combustio; infrared; scelerisque conductivity, PID photoionization, Laser vel alii, secundum genus gasi, range, campi ambitus et usoris postulant.
Sagancy	≤±2% F.S (alia vel superiora accurate gradus potest nativus)
Linearity	≤±2%	Repeatability	≤±2%	dubitatio	≤±2%
Responsum tempus	T90≤20 seconds			Recuperatio tempore	≤30 seconds
opus environment	Temperature: -40 ~ + 70 humiditas: ≤10 ~ 95% RH et in filters constructum adhiberi potest in humiditate alta vel in pulvere alto environment.
Sample felis tortor	-40 ~ + 70 ℃ Libitum figuratio summus temperaturae sampling et refrigerandi colum manubrium fieri poterit ut fumum gasi temperie de MCCC deprehendere.
Potentia copia	3.6VDC, 10000mA altae capacitatis rechargeable eu polymerum altilium
Deprehensio modus	Instructum in exantlaretur genus cum DCCC ml / min rate fluunt
Terror modus	sonus & lux et tremor terrorem
Communicationis interface	USB (praeferens et communicatio), ad libitum: RS232, communicatio infrared, agnitio latae sententiae
Data repono	Configuratio mensurae est capacitas data repositionis ad 100, 000 viscus; SD card repositionis ac USB orbis repositionis functiones ad libitum conformatio sunt.
Praesidium campester	IP66
Explosion-probationis genus	Genus per se tutum
CREPITUS-probationis signum	Exia II CT6
Dimensiones exteriores	230×210×120 mm (L×H×W)
Pondus	2.5Kg
Latin accessiones	Manual, absolute certificatorium, warantia card, USB patina (including cable data), aluminium portans causam
	Inaedificata in humiditate pulveris sparguntur, 0.4 metri immaculati ferri manubrii sampling (I metri caligarum, cum sparguntur pulvis, non retractabilis)
Libitum items	1.2 m retractable sampling manubrio
	Calor calidi sampling et refrigerans manubrium colum, caliditas humiditas pretreatment systema
	mini externi infrared mini printer vel constructi mini typographi
	Repositio SD cardo, USB repositio orbis, communications wireless data.

Omnes casus, qui requirunt deprehensionem collectionum gasorum portatiles, sicut petroleum, chemicum, pharmaceuticum, environmental tutela, distributio gasi combustionis, mercium, fumi analysin gasi, regimen aeris et cetera.

Convenit ad detectiones gasorum in atmosphaera environment in pipelino vel angustiis spatii; et puritas lacus gasi et varii alti concentrationes singulorum gasorum cum curriculo gasi sicut nitrogenii gas vel oxygeni gas.
