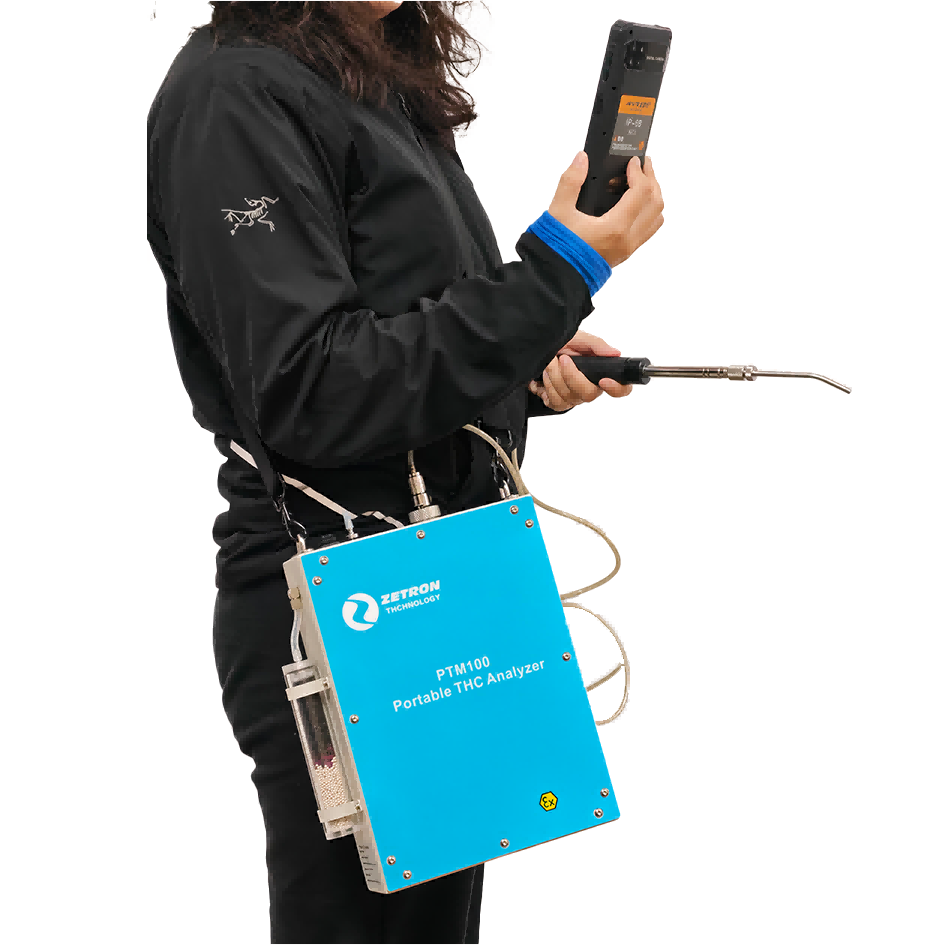

PTM100 Gas Volatile Organic Analyser

Gas volatile organicum PTM100 analysris flammae ionizationis (FID) et photoionizationis (PID) detectoris instructum est, qui simul operari potest et consilium explosionis probationis adoptat. Deprehensio LDAR adhibetur, lacus detectio punctorum clausorum in oleo et gasorum collectione et systematibus recuperandis, deprehensio VOCs in liquidis superficiebus diffluentibus et apertis, celeri obtegendo terrae pollutantium ac regionalium lustrationum comprehensivarum.

Mitte Inquisitionem

Signa applicabilis:

GB 37822-2019 "Imperium Latin pro Fugitivis emissiones volatilium compositorum organicarum";

HJ 733-2014 Technical Guidelines for the Detection of Volatile Organic Compounds from Leaks and Open Surface Emissions;

HJ 1019-2019 Technical Guidelines for Sampling Volatile Organic Compounds in Soil and Groundwater;

EPA Methodus 21 "Determinatio Compositionum volatilium organicarum";

Lacus deprehensio concentrationis ad puncta clausis olei et systematis collectionis gasi in GB 20950-2020 " Signa emissione Pollutantium Air de Depots Olei " ;

GB 20951-2020 "Signa Emissionis Pollutantis Air Pollutantis Olei Transportationis" pro oleum et gas signaculum punctum lacus deprehendendi vehicula vehicularia;

Lacus deprehensio olei et gasi signandi puncta vecturae in GB20952-2020 "Signa emissione Pollutantium aeris ex gas stationibus".

Features clavis:

1. Flammam consectetuer ionizationem (figuram vexillum) et detectores photoionizationes duales;

2. Digital ostentatio hydrogenii pressi et commemoratio intelligentis temporis operantes remanendi;

3. Intelligens admonitio altilium potestatis ac temporis;

4. FID ignitio automataria, flamma temperatura real-time vigilantia;

5. Instructa in datorum plus quam 200 gasorum volatilium organicorum;

6. Host explosio-probationis signum: Ex db ia IIC T4 Gb;

7. Explosio-probatio manus operantis utitur 6.5 inch tactu velum et subsidia Bluetooth et WIFI;

8. Explosio-probatio notae manutenentis operator: Ex ib IIC T4 Gb/ Ex ibD 21 T130℃.

Parametri technici:

Principalis parametri	Parameter range
range mensuræ	FID: 0～100,000ppm
range mensuræ	PID: 0～2,000ppm, multae regiones in promptu sunt; [Libitum configuration]
Modus deprehendendi modus	FID: 0.5 ppm methanum
Modus deprehendendi modus	PID: 0.5 ppm isobutylene
Sagaciter	± 5% of reading or ±1 ppm, uter maior est
Sagaciter	± 5% of reading or ±1 ppm, uter maior est
Repeatability	FID: 2% ad 500 ppm methanum
Repeatability	PID: 1% ad 100 ppm isobutylene
Respondens eventus (T90)	FID:≤3.5 s (1000ppm methanum)
Respondens eventus (T90)	PID:≤3.5 s (500ppm isobutylene)
Sampling flow	800 ml/min (adjustable)
vita altilium	≥10hours (0℃)
Consectetuer patientia	≥15hours
Virtus nibh	DC8.4 V 1A
Opus Environment	-30~45°C, 10%~95% RH
Gas interface	1/4 inch
Hospes pondus	3.5 KG

Stipare List

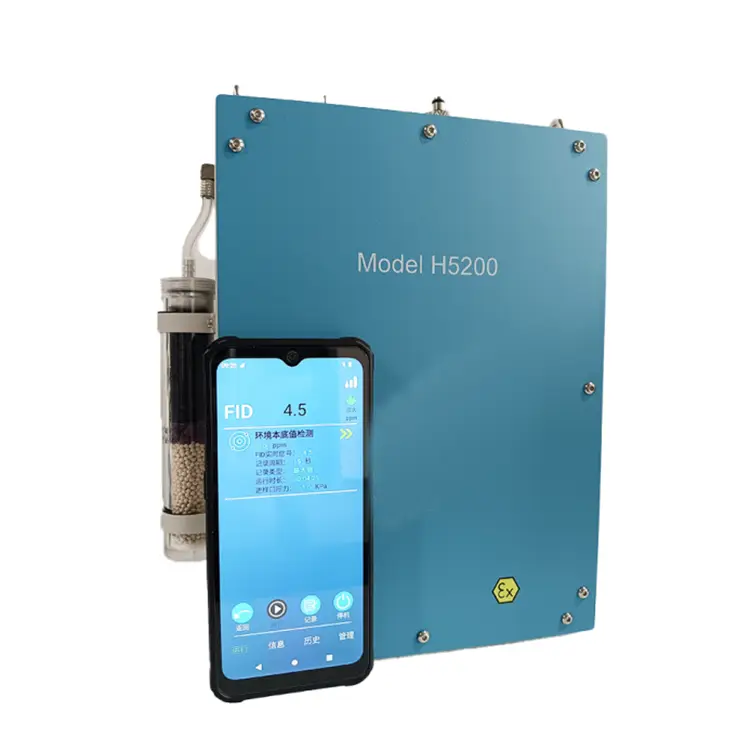

Huayi H5200 Gas Volatile Organicum Analyzer No.

Vide numerum	nomen	Specification	unitas	quantitas	Factory inspectionem	Dicta
1	H5200 Host	Standard configurationis	turrim	1	〇
2	Humerum Straps	/	singula	1	〇
3	CREPITUS-probationem handheld operator	/	turrim	1	〇
4	Tutela arca		singula	1	〇
5	Virtus nibh	AC8.4V ,1.2A	singula	1	〇
6	Inlet filter	Φ25mm，1μm	singula	20	〇
7	Inlet filter	Φ17*2, 50um	singula	2	〇
8	Sampling explorare ecclesiam	/	set	1	〇
9	Hexagon clavis	2mm	singula	1	〇	Exhaurire operculum disassembly et conventum
10	(V)CC tooling	/	singula	1	〇
11	Exhaurire portseal	Φ18.5 *1.8	singula	2	〇
12	Inletseal	Φ22*2.5	singula	2	〇
13	Filtertrap	/	singula	1	〇
14	Calibration components	/	set	1	〇
15	Consectetuer implens components	/	set	1	〇
16	User Manual	Electronic versio	participes	1	〇
17	Productum certificatorium	/	participes	1	〇
