SESAL

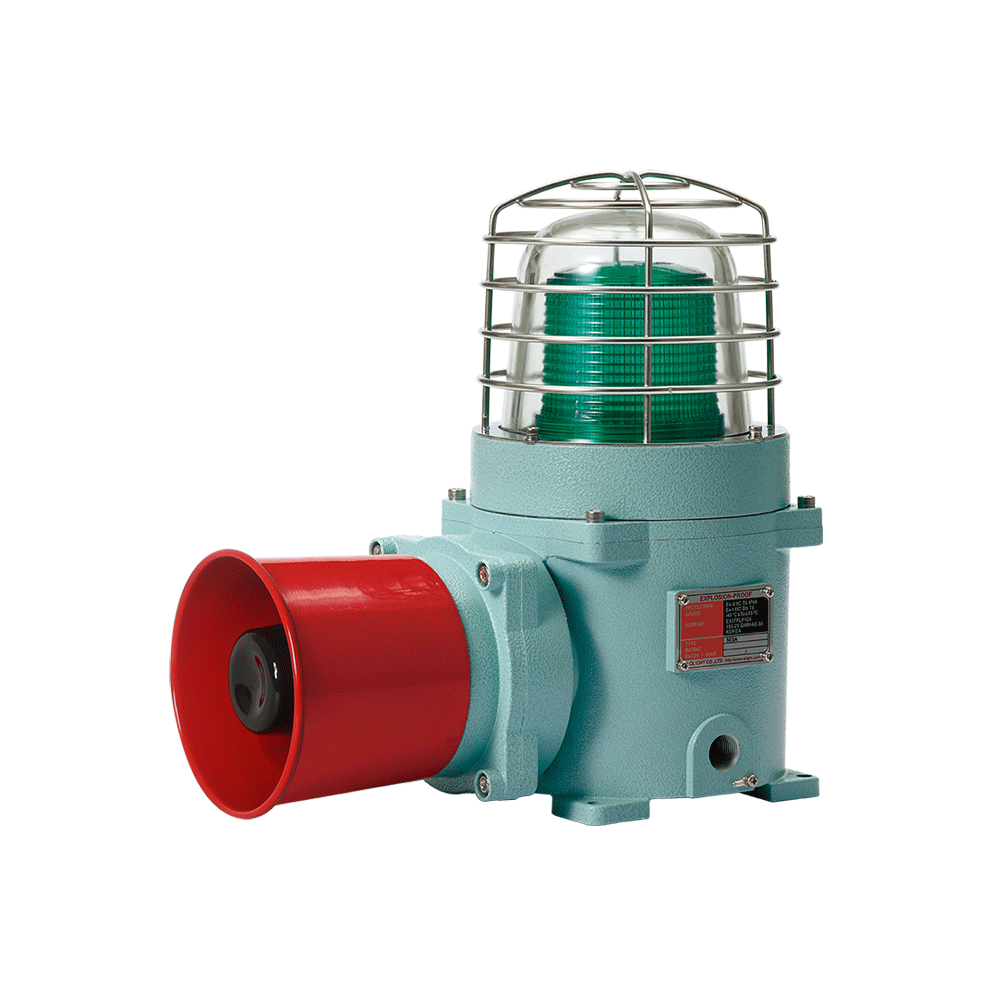

SESAL：LED Stabilis / Micans signum Beacon & Electronic Sounder deducto Max.118dB

Product Feature

20 Inaedificata Soni (Max.118dB at 1m), 5 Vox User-Defined (110~ 115dB at 1m)

Voltage

DC:24V│AC:120V,230V

Dimension

Cavea Diameter: Ø167 Height: 333 Longitudo:327

Materiae

Lentem-Temperata vitrum Hususing-al

Praesidium rating

Ex db IIC T6 Gb│IP66

Testimonium

• Magnae explosionis probationis signum pharus / lucis & electronicarum compositionum sanioris
• Varii fontium luminis et lectionum sanae ad aptationem tuam aptam adhibendis necessitatibus
• Aluminium habitationi optimum vetustatem praebet
• Plene inclusum compages cum praesidio rating de IP66 "
• Integrated habitationi ac terminali arca exemplar
• Longum productum vita cum applicatione magni intensioris ducitur fons lucis
• Apta locis ubi bulbus postea incommodum est
• Built in switch ad stabilis / corusca delectu
• Micans rate: 60-80 flashes/min
• Volumen: Max. 118dB ad 1m (Volume Novifacta)
• Color habitationi Latin: MUNSELL No. 7.5BG 7/2
• Cable viscus: 1/2″ NPT
• Materiae : vitri lentis iracundi, Filtri-PC, Habitationi Al, Praesidium cavea-STS316L, Reflector-ABS
• Testimonia : IECEx, ATEX, NEPSI, KCs, CCS, CC, CCC(F), TS

• Praesidium rating:

IECEx - Ex db IIC T6 Gb, IP66

ATEX - II2G Ex db IIC T6 Gb, IP66

KCs - Ex d IIB+H2 IP66 T6

NEPSI, CCC, CCS - Ex db IIC T6 Gb, Ex tb C T80℃ Db

TS - Ex db IIC T6 IP66 Gb

• Ambiens operating temperatus:

-20°C ≤ Tamb ≤ +60°C(TS)

-40°C ≤ Tamb ≤ +55°C(KCs)

-40°C ≤ Tamb ≤ +60°C

intentione AC120V: AC110V-120V, AC230V: AC220V-230V

Exemplar numerus	Voltage	Current	Sana forma et volumen	Testimonia	Pondus	Color
SESAL	DC24V	1.40A	· WS-5 Admonitio sonorum : Max.118dB · WP-5 Praecipua admonitionis soni : Max.118dB · WM-5 Melodies : Max.118dB · WA-5 Alarms : Max.116dB · WV-5 Insolens voces : 110-115dB		8.42kg	R-Red A-Amber G-Green B-Blue
	AC120V	300mA			9.02kg	R-Red A-Amber G-Green B-Blue
	AC230V	70mA			9.02kg	R-Red A-Amber G-Green B-Blue

ᆞ Productum semi-permanens cum applicatione ingentis intensionis ductus lucis principium, idoneus locis in quibus bulbus incommodus est.

ᆞFlashing rate: LX ~ LXXX / min (inaedificata stabilis / corusca lectio switch)

※ CCC(F)   facilis: DC24V

Sonus Tone deducto of Latin Product
